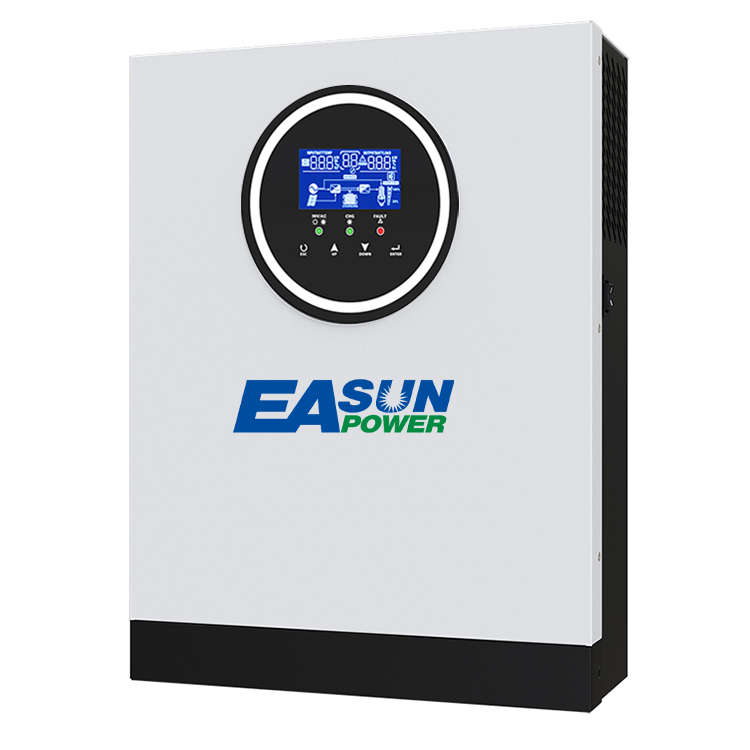

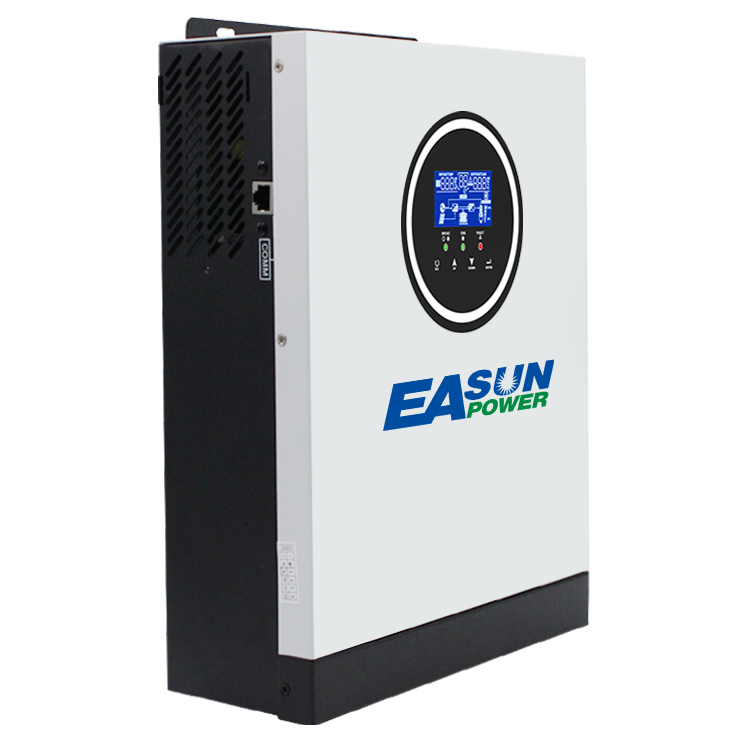

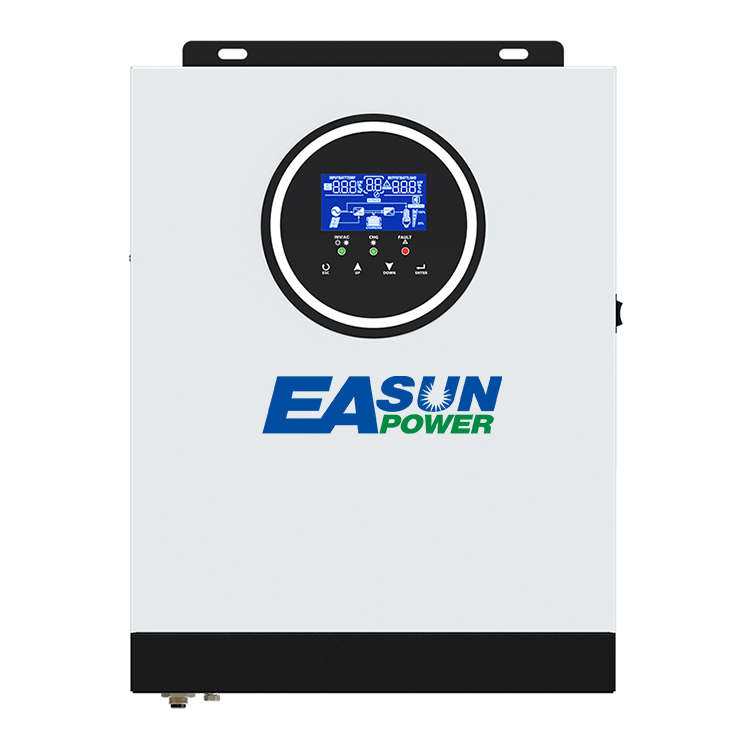

Easun iSolar SMH 2.2/3.2KW MPPT Solar Inverter with High PV input MX 450VDC
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 2
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 3
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 4
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 5
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 6
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 7
230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W - Image 8

230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W

$185.00

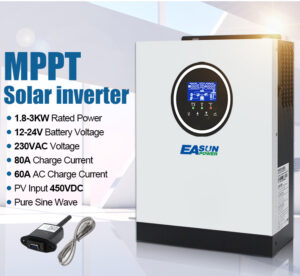

Key Features:

  • Pure sine wave inverter
  • WIFI&GPRS available for IOS and android
  • Built-in 80A MPPT solar charge
  • Built-in anti-dusk kit for harsh enviromen(optional)
  • Compatibe with lithium-ion battery
  • High PV input voltage range(90~450VDC)
  • Smart battery charge design to optimize battery life
  • Overload,high temperature,inverter output short circuit protection
  • Cold start function
  • Intelligent fan speed adjustment
Add to quote
SKU: iSolar-SMH-2.2/3.2KW Categories: , Tags: , ,

Description

230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W

Items Specification:

MODEL Isolar SMH 2.2KW Isolar SMH 3.2KW
Rated Power 2200VA/1800W 3200VA/3000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Surge power 4400VA 6400VA
Transfer Time 10ms (for personal computers) 20ms (for home appliances)
Wave form Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 12VDC 24VDC
Floating Charge Voltage 13.5VDC 27VDC
Overcharge Protection 15.5VDC 31VDC
Maximum charge current 60A

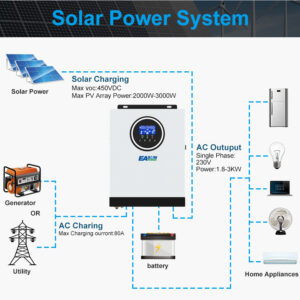

SOLAR CHARGER
MAX.PV Array Power 2000W 3000W
MPPT Range@ Operating Voltage 90-450VDC
Maximum PV Array Open

Circuit Voltage

 450VDC
Maximum Charging Current 80A
Maximum Efficiency 98%
PHYSICAL

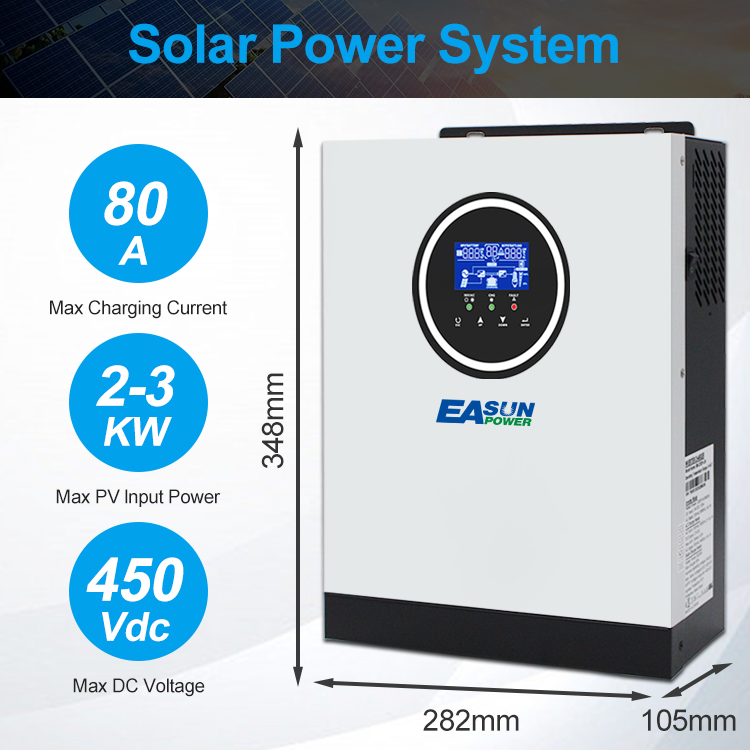

Dimension.D*W*H(mm) 348*282*105mm
Net Weight (kgs) 5.0kg 5.5kg
Communication Interface RS232(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 55°C
Storage Temperature -15°C to 60°C
