Description

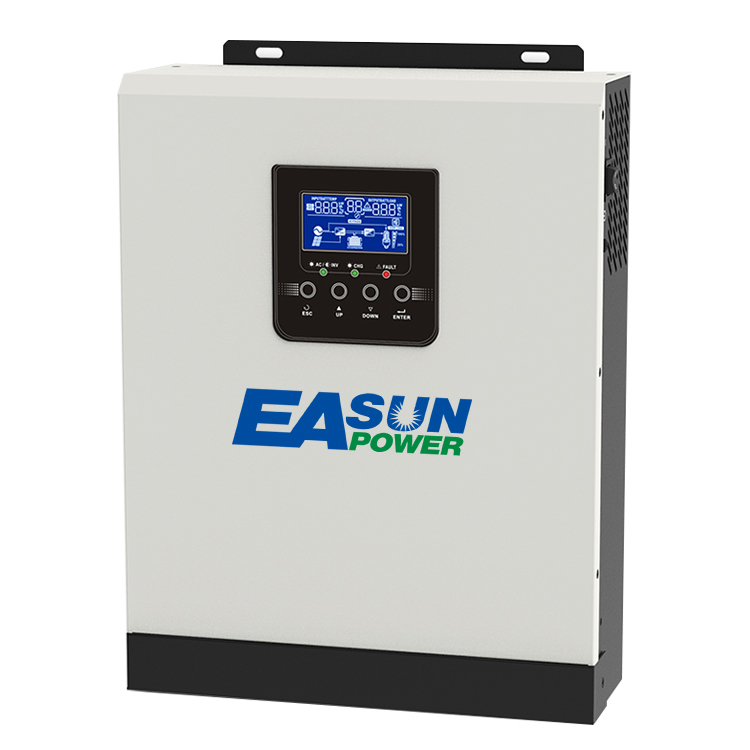

230VAC 3KW Off Grid Home Solar System Inverter LCD Display w/ Built-in MPPT Solar Charger Controller
Item Specification:
| MODEL | Isolar SMH 3KW |
| Rated Power | 3000VA/2400W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(for personal computers)
90-280VAC(for home appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% |
| Surge power | 6000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10ms (for personal computers)
20ms (for home appliances) |
| Wave form | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 31VDC |
| SOLAR CHARGER | |
| Maximum PV Array Power | 1000W |
| Maximum PV Array Open Circuit Voltage | 102VDC |
| MPPT Range @ Operating Voltage | 30-80VDC |
| Maximum Solar Charging Current | 40A |
| Maximum AC Charging Current | 20A or 30A |
| Maximum Charging Current (Utility Charging+Solar Charging) |
70A |
| Standby Power Consumption | 2W |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Dimension.D*W*H(mm) | 305*272*100 |
| Net Weight (kgs) | 5.2kg |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 60°C |
More Details:
