Description

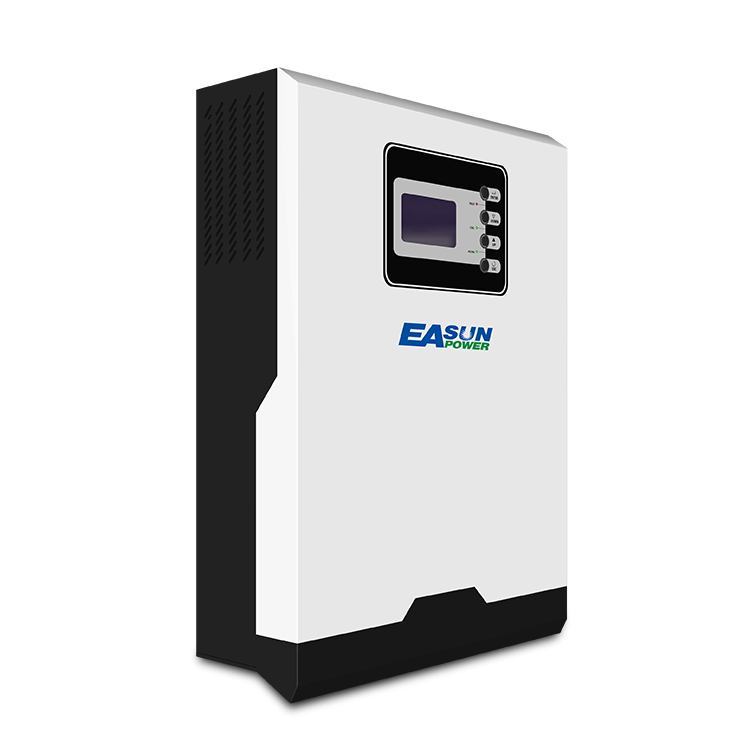

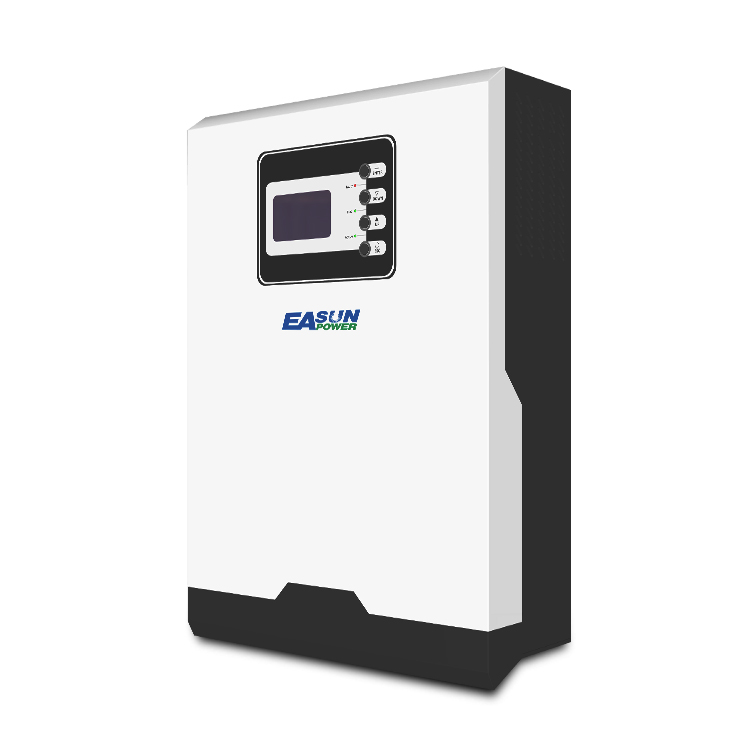

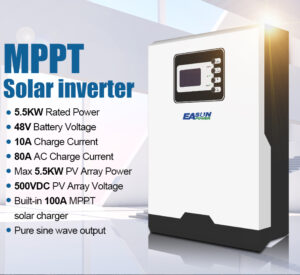

Easun 230VAC 5.5KW MPPT Solar Inverter 48V Lithium Battery Compatible High PV Input Voltage
Item Specification:
| Model | SMR II 3K 24V | SMR II 5.5K 48V |
| Rated Power | 3000VA/3000W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(For Personal Computers);90-280VAC(For Home Appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt. Mode) | 230VAC±5% | |
| Surge Power | 6000VA | 11000VA |
| Efficiency(Peak) | Up to 93.5% | |
| Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) | |
| Waveform | Pure Sine Wave | |
| BATTERY | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| SOLAR CHARGER & AC CHARGER | ||

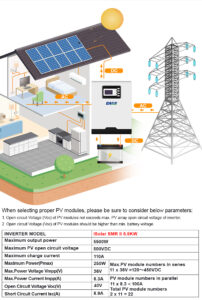

| Maximum PV Array Open Circuit Voltage | 500VDC | 500VDC |
| Maximum PV Array Power | 5500W | 5500W |
| MPPT Range @ Operating Voltage | 120～450VDC | 120～450VDC |
| Maximum Solar Charge Current | 100A | 100A |
| Maximum AC Charge Current | 80A | 80A |
| Maximum Charge Current | 100A | 100A |
| PHYSICAL | ||

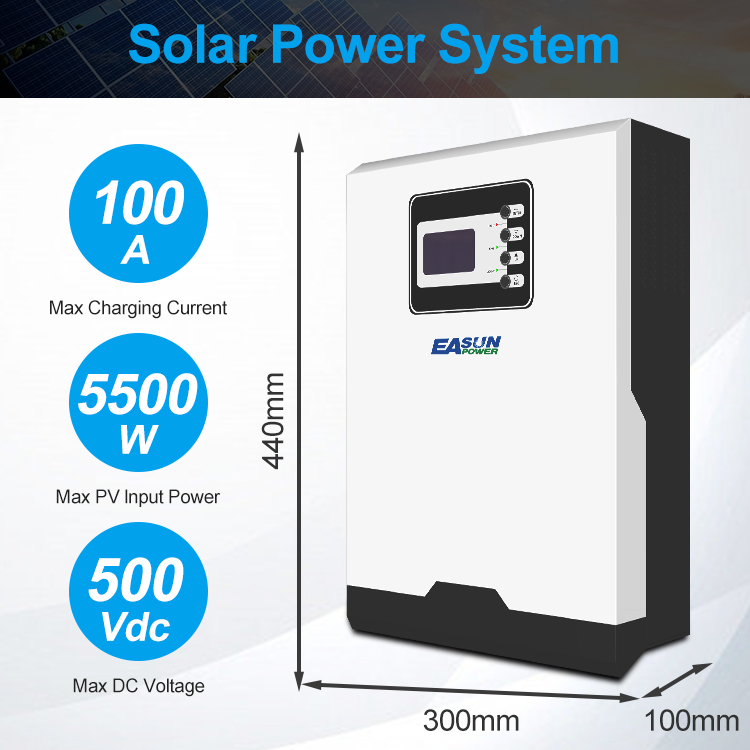

| Dimension,D×W×H(mm) | 100×300×440 | |
| Net Weight(kgs) | 9 | 10 |

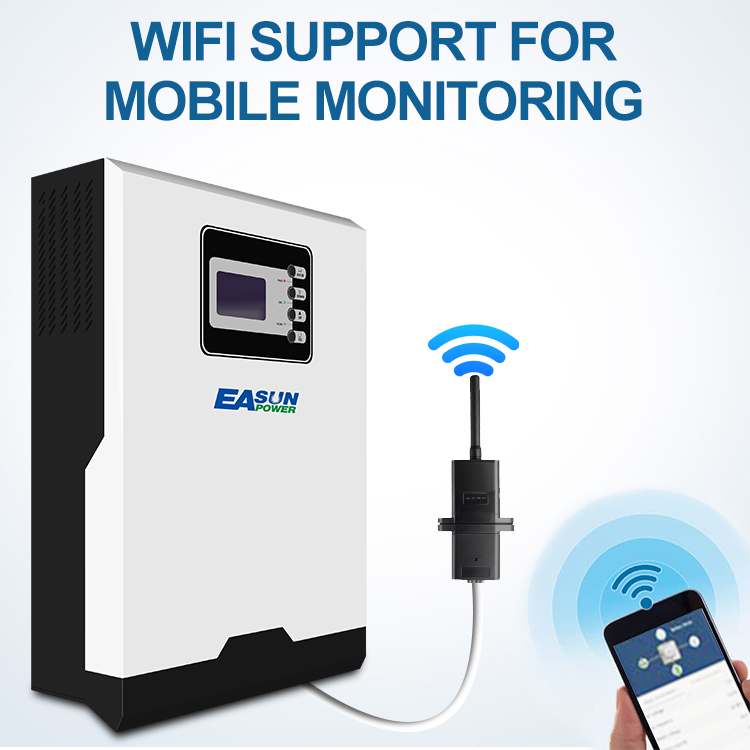

| Communication Interface | USB/RS232 | |
| ENVIRONMENT | ||
| Humidity | 5% to 90% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |

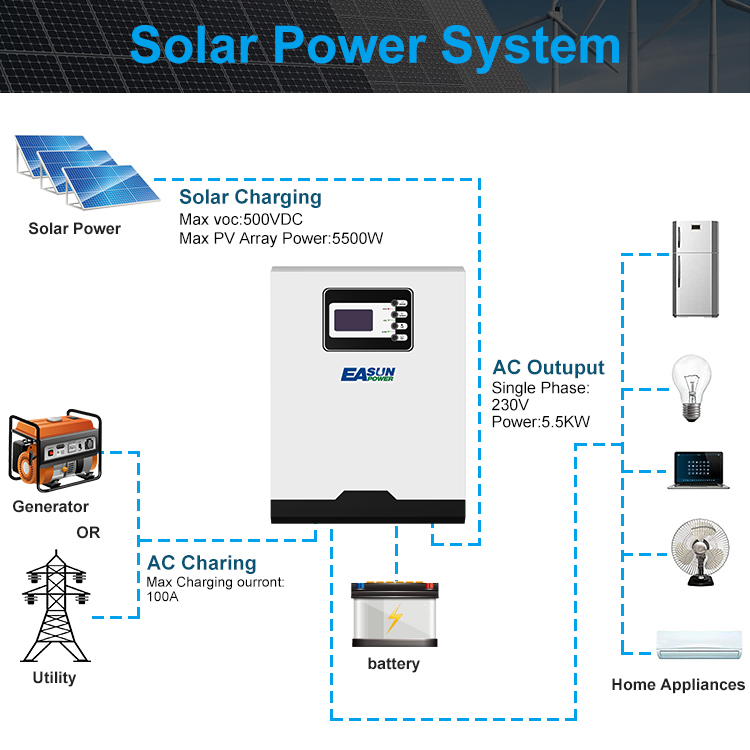

More Images:
Reviews
There are no reviews yet.
