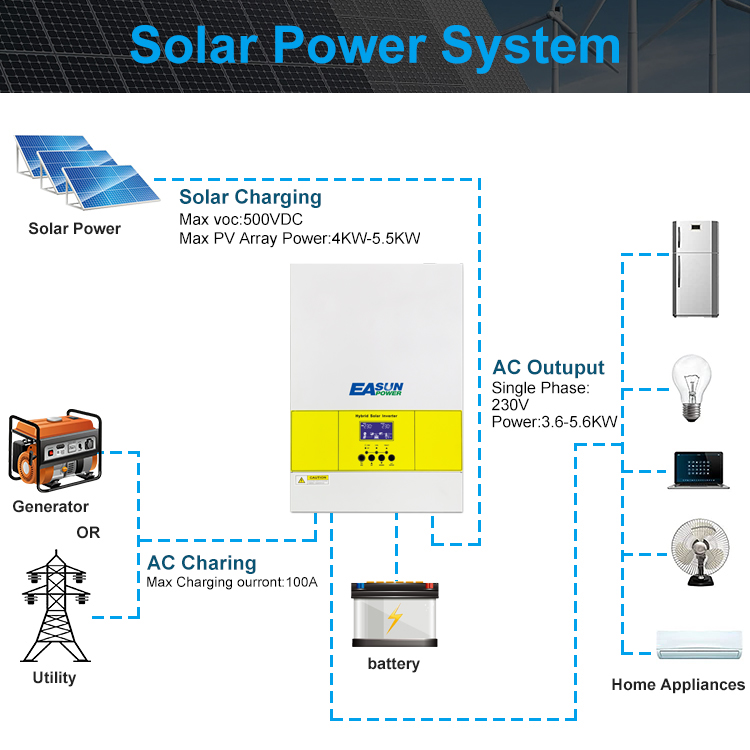

3.6KW MPPT Off Grid Solar Inverter for Home Sun Power System

EASUN 230VAC 5.6KW Off-Grid MPPT Photovoltaic Inverter 5500W PV Input for Residential Solar System - Image 3

EASUN 230VAC 5.6KW Off-Grid MPPT Photovoltaic Inverter 5500W PV Input for Residential Solar System - Image 4

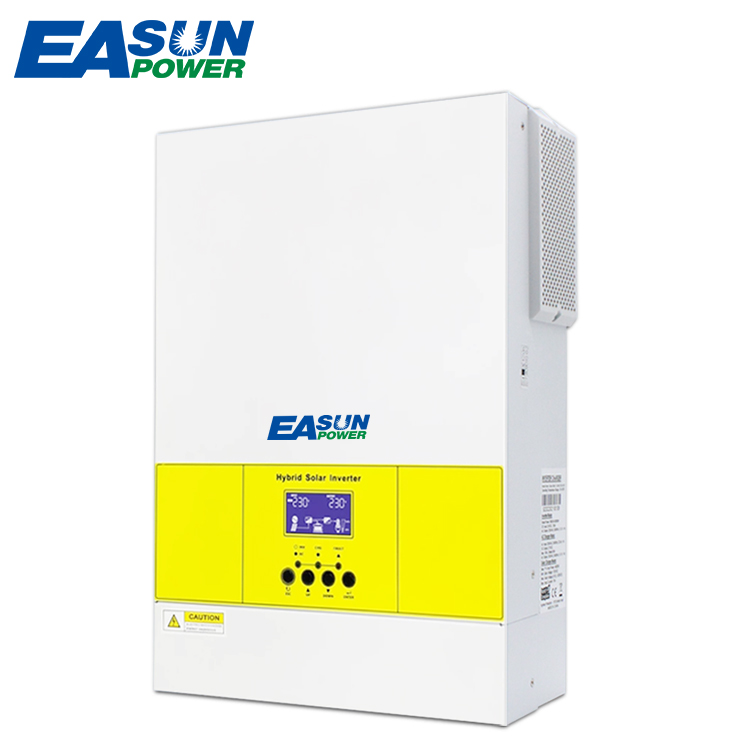

EASUN 230VAC 5.6KW Off-Grid MPPT Photovoltaic Inverter 5500W PV Input for Residential Solar System

$445.00

Key Features:

Pure sine wave solar inverter
Output power factor: 1.0
High PV input voltage range
Built-in MPPT solar controller
Battery equalization function to optimize battery performance and extend lifecycle
Inverter running without battery
Built-in anti-dusk kit for harsh environment
Parallel operation with up to 12 units

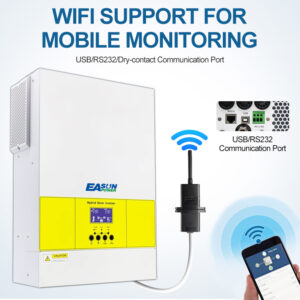

WIFI/GPRS remote monitoring(Optional)
Detachable LCD(Optional)

SKU: iSolar-SMG-II-5.6KW Categories: Off-grid Solar Inverters, Products, Solar Inverters Tags: 5.6kw home solar sytem, 5.6kw solar inverter, off grid solar inverter, solar inverter

Description

EASUN 230VAC 5.6KW Off-Grid MPPT Photovoltaic Inverter 5500W PV Input for Residential Solar System

Item Specification:

MODEL	Isolar SMG II 3.6KW	Isolar SMG II 5.6KP
CAPACITY	3.6KVA/3.6KW	5.6KVA/5.6KW
Parallel Capability	NO	Yes,9pcs
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
Frequency	50/60Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	7000VA	11000VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10Ms(For personal Computer);20Ms(For Home Appliances)
Peak Efficiency(PV to INV)	96%
Peak Efficiency(Battery to INV)	93%
Overload Protection	5s@>=150%load;10s@110%-150%load
Crest Factor	3:1
Admissible Power Factor	0.6-1(inductive or capacitive)
BATTERY
Battery Voltage	24VDC	48VDC
Floating harge Voltage	27VDC	54VDC
OverCharge Protection	33VDC	63VDC
Charging Method	CC/CV
Solar Charger&AC Charger
Solar Charger TYPE	MPPT
Max.PV Array power	4000W	5500W
Max.PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	120VDC-450VDC
Max.Solar lnput Current	15A	18A
Max.Solar Charge Current	100A	100A
Max.AC Charge Current	60A	60A
Max.Charge Current	100A	100A
PHYSICAL

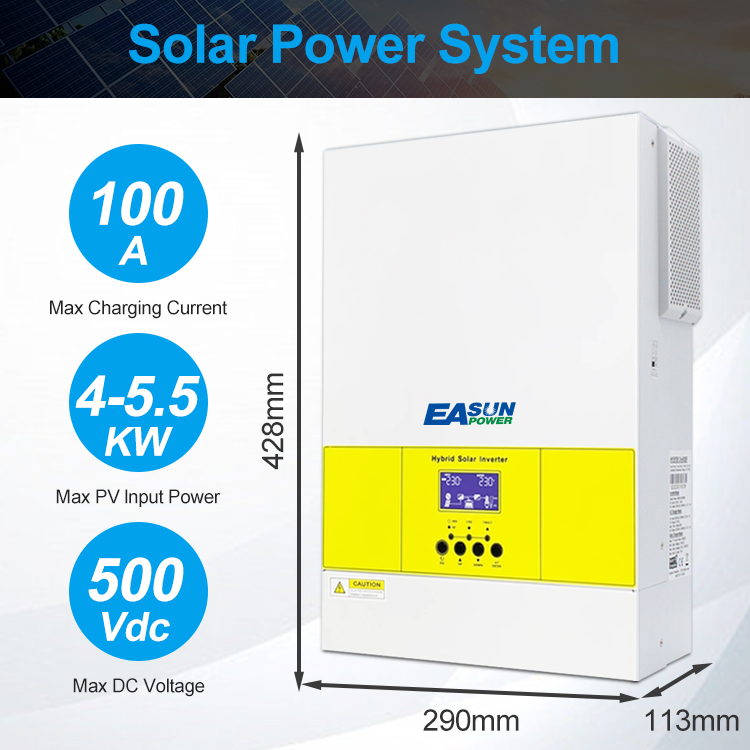

Dimensions,DxWxH(mm)	482x290x113
Package Dimensions,DxWxH(mm)	565x380x190
Net Weight(Kgs)	9	10

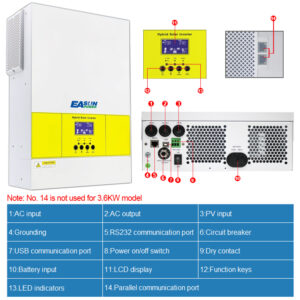

Communication lnterface	USB/RS232/Dry-contact
ENVIRONMENT
Operating Temperature Range	-10℃to50℃
Storage temperature	-15℃to60℃
Humidity	5%to95%Relative Humidity(Non-condensing)
