Description

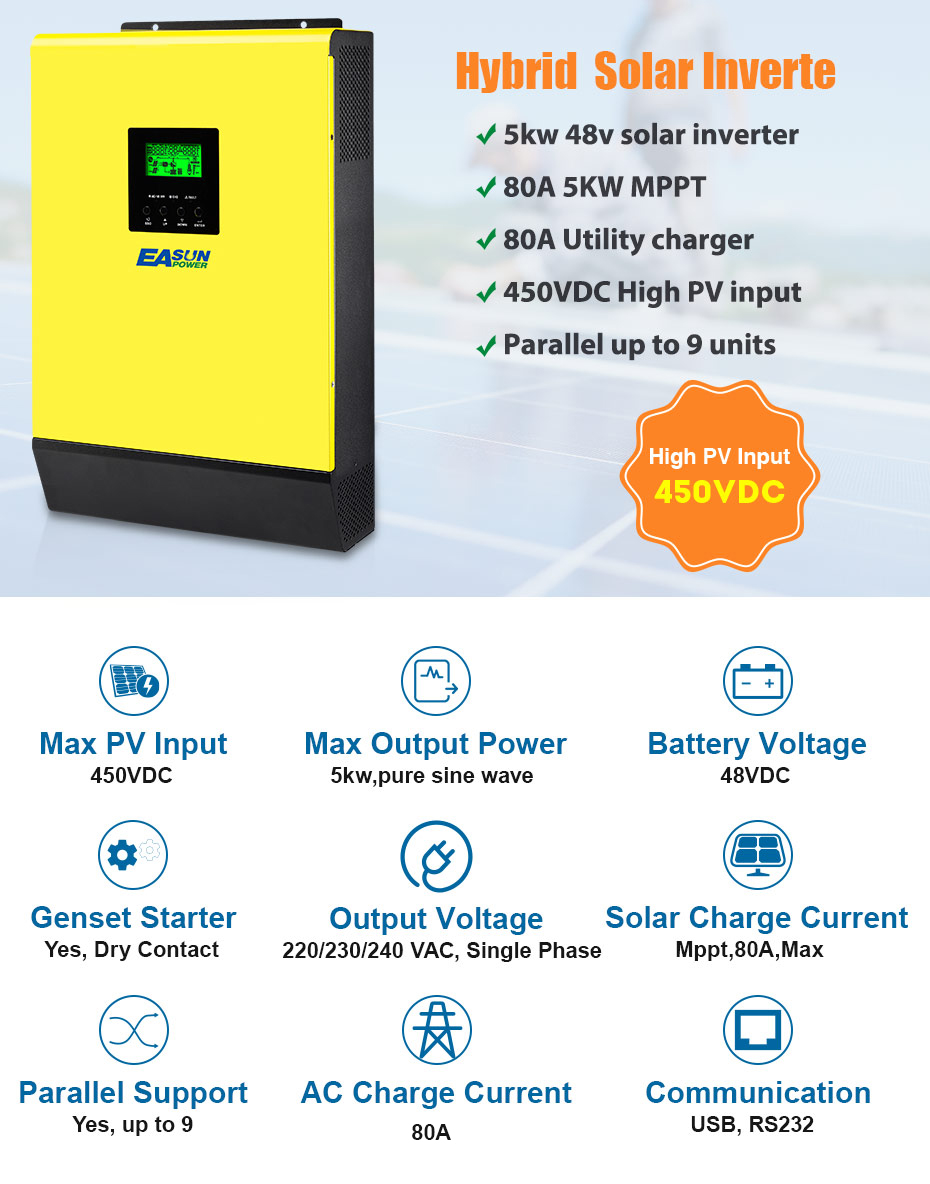

Main Features
Pure sine wave max 5000w output
Max 80A MPPT solar charger (max 5kw PV array)
Max 450Vdc input
HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system
Parallel support up to 9 units
Batteryless operation
Total system max charging: 80A

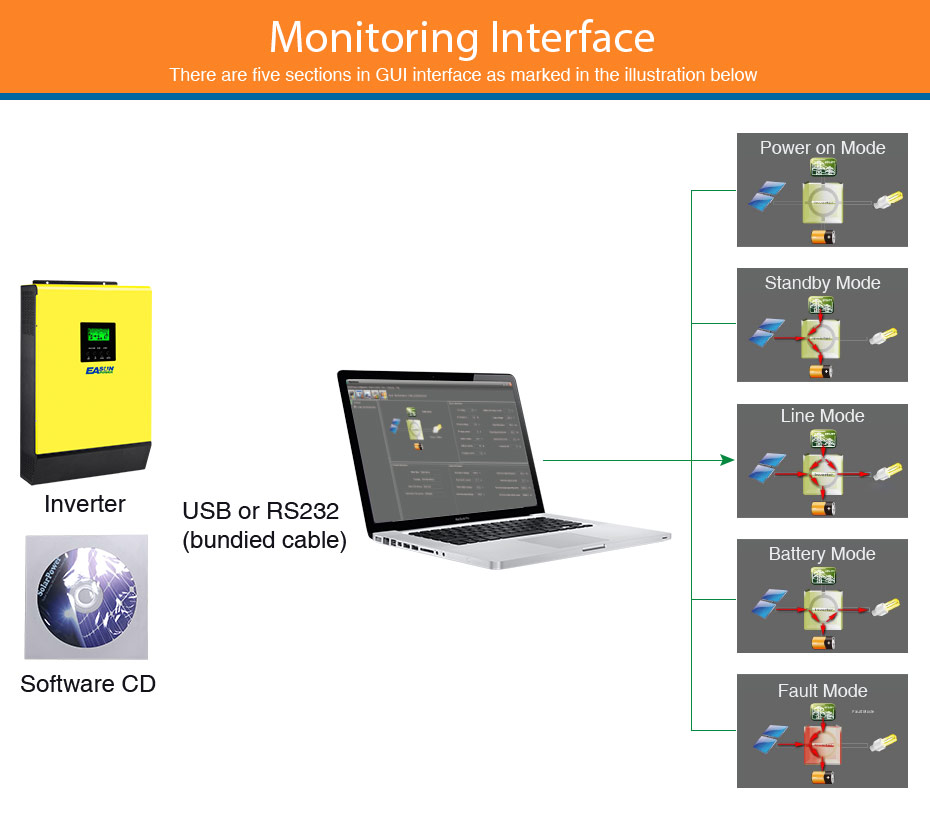

Bundled monitoring & setting software
Supports 50hz or 60hz (program adjustable)
Grid feedback when there is excess energy
USB interface available

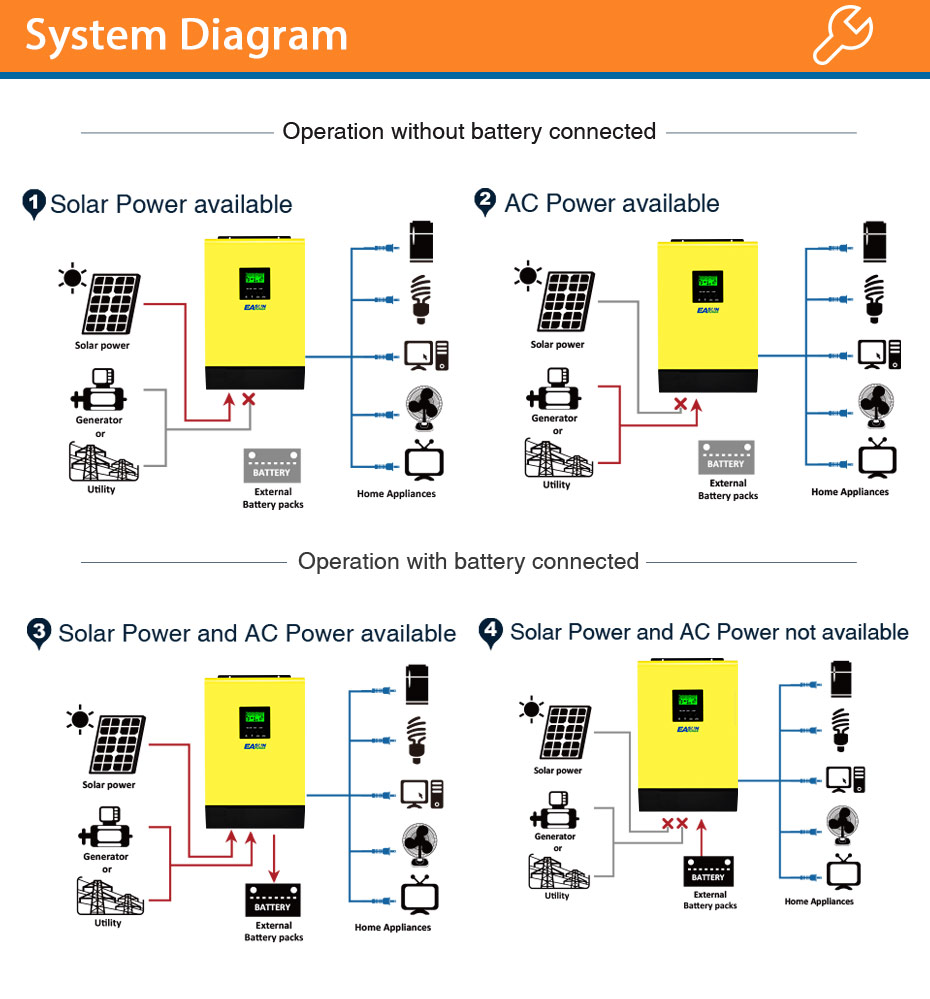

Able to use ac grid or generator power
Timer setting for AC charging & output now available
MODEL |
IGrid SV II 5KW |
Max. PV Array Power |
5000W |
Rated Output Power |
5000W |

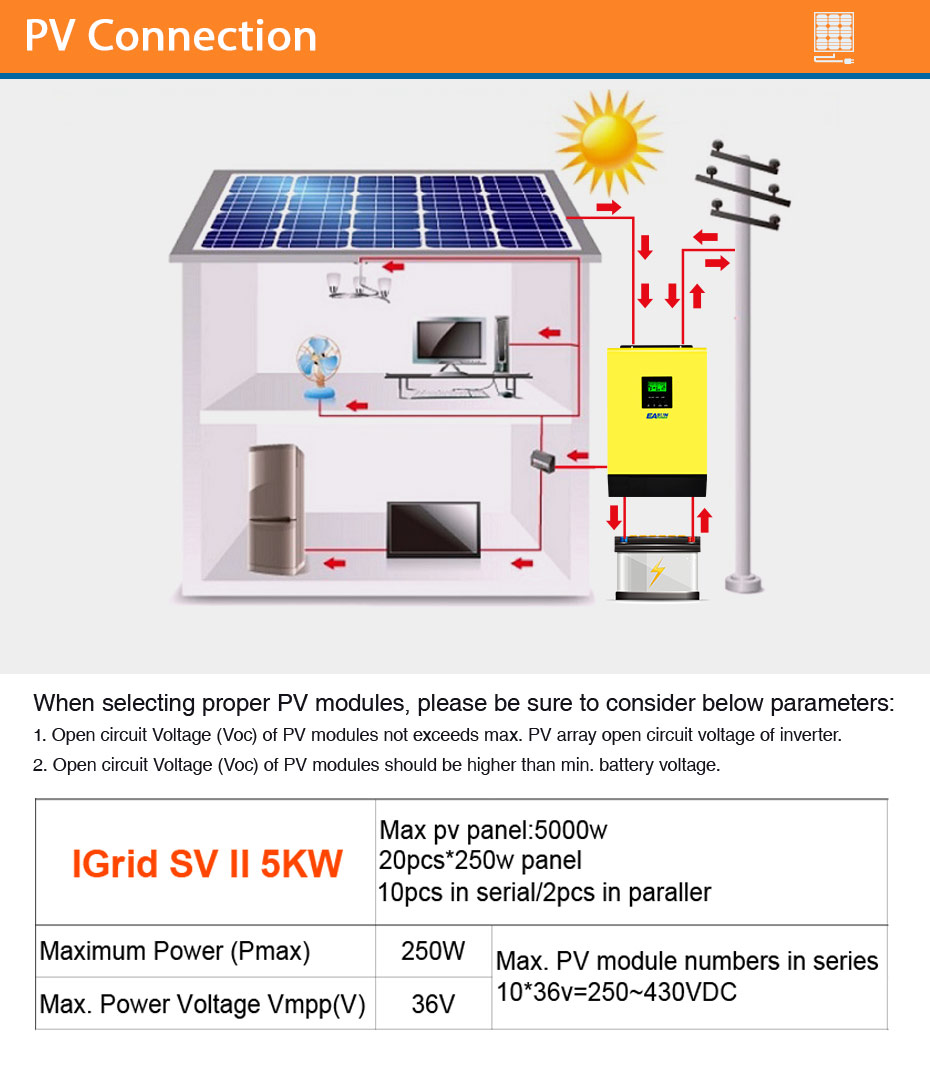

Maximum PV Array Open Circuit Voltage |
450 VDC |
MPPT Range @ Operating Voltage |
120 VDC ~ 430 VDC |
MPP Tracker Number |
1 |
GRID-TIE OPERATION |
|
GRID OUTPUT (AC) |
|
Nominal Output Voltage |
220/230/240 VAC |
Output Voltage Range |
184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
Nominal Output Current |
21.7A |
Power Factor |
> 0.99 |
EFFICIENCY |
|
Maximum Conversion Efficiency (DC/AC) |
95% |
OFF-GRID, HYBRID OPERATION |
|
GRID INPUT |
|
Acceptable Input Voltage Range |
90 – 280 VAC or 170 – 280 VAC |
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
Maximum AC Input Current |
40A |
BATTERY MODE OUTPUT (AC) |
|
Nominal Output Voltage |
220/230/240 VAC |
Output Waveform |
Pure sine wave |
Efficiency (DC to AC) |
93% |
BATTERY & CHARGER |
|

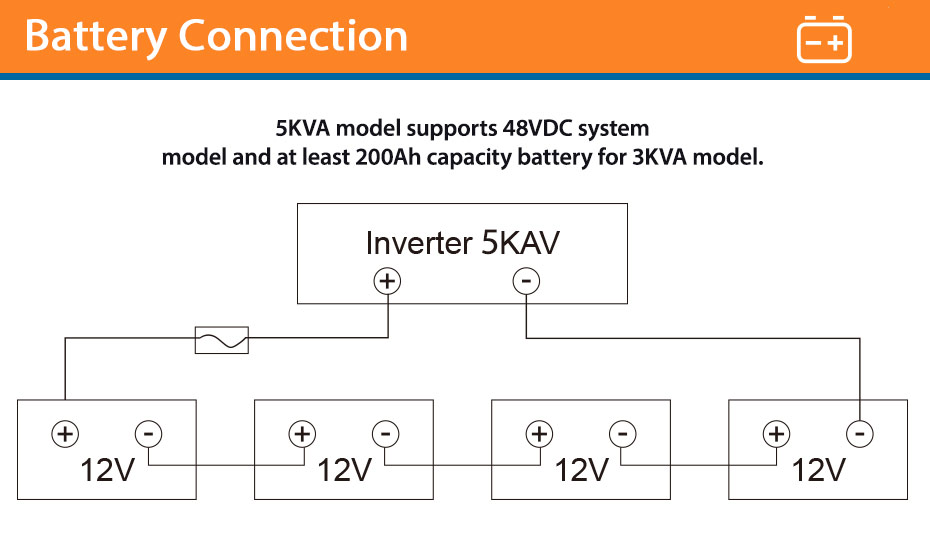

Nominal DC Voltage |
48 VDC |
Maximum Solar Charge Current |
80 A |
Maximum AC Charge Current |
80 A |
Maximum Charge Current |
80 A |
GENERAL |
|
PHYSICAL |
|
Dimension, D x W x H (mm) |
120 x 295 x 468 |
Net Weight (kgs) |
12 |
INTERFACE |
|

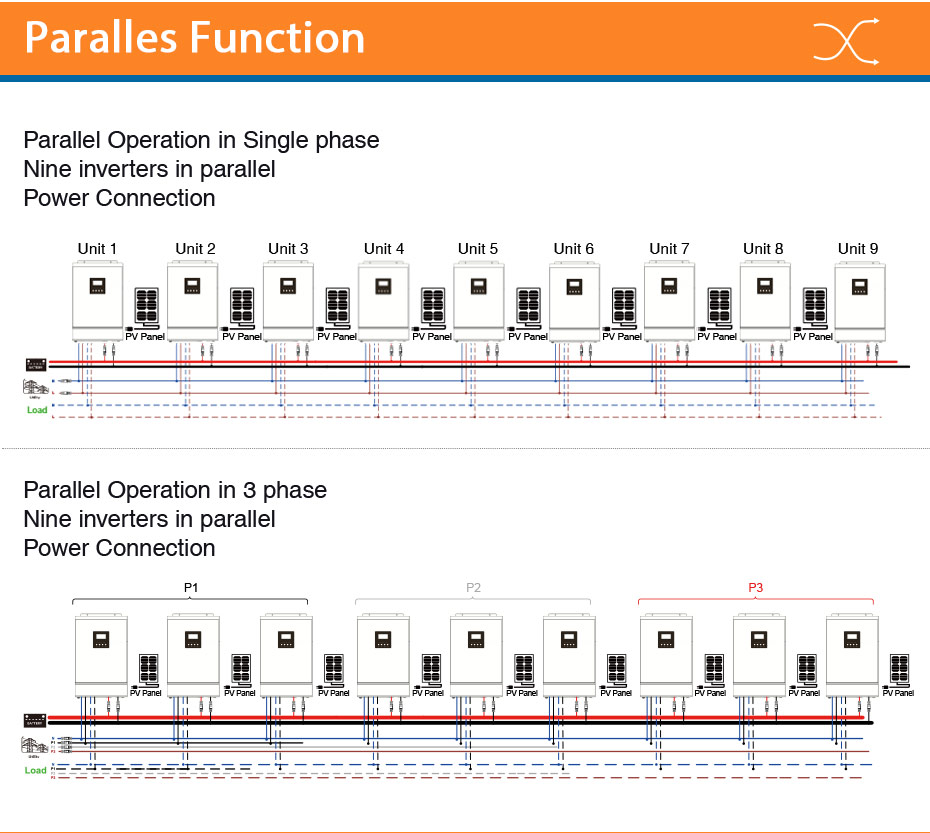

Parallel Function |
Yes, 9 units (Parallel kits are not included) |
Communication Ports |

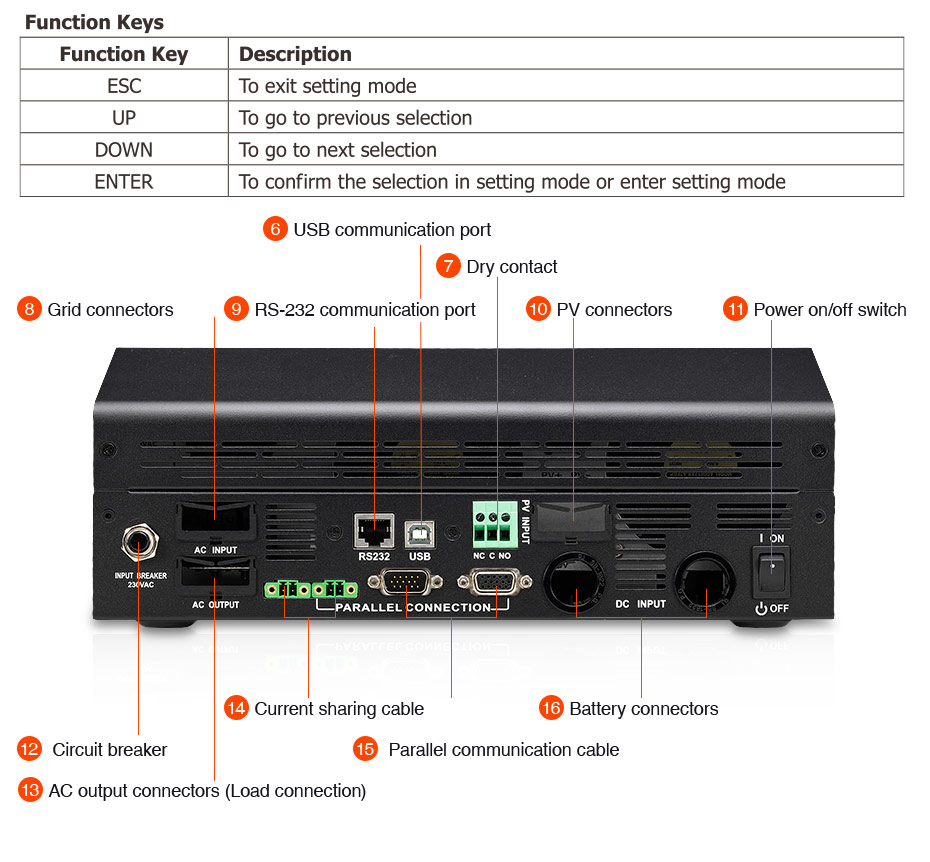

USB, RS-232 and dry contact |
ENVIRONMENT |
|
Humidity |
0 ~ 90% RH (Non-condensing) |
Operating Temperature |
0 to 50°C |
